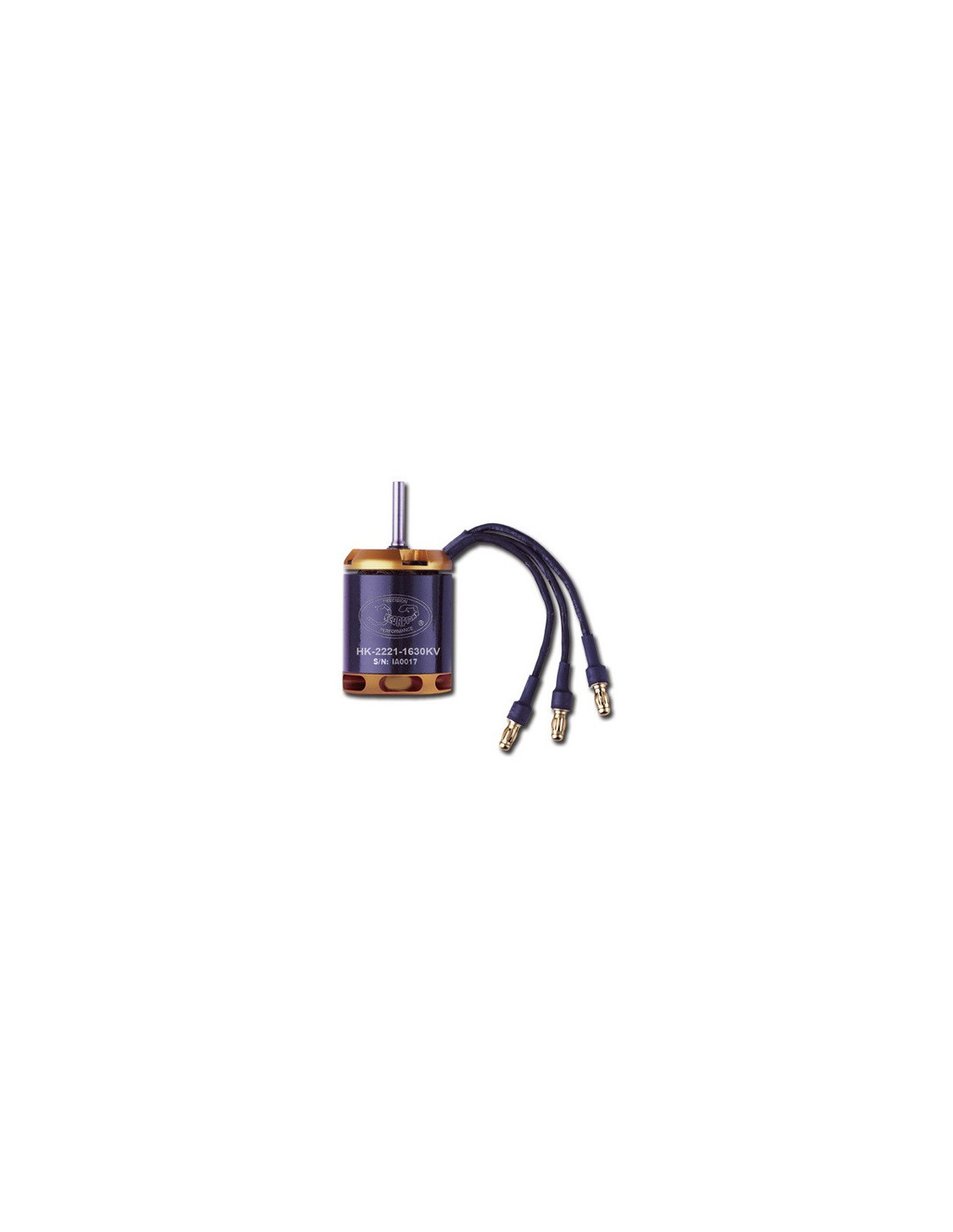

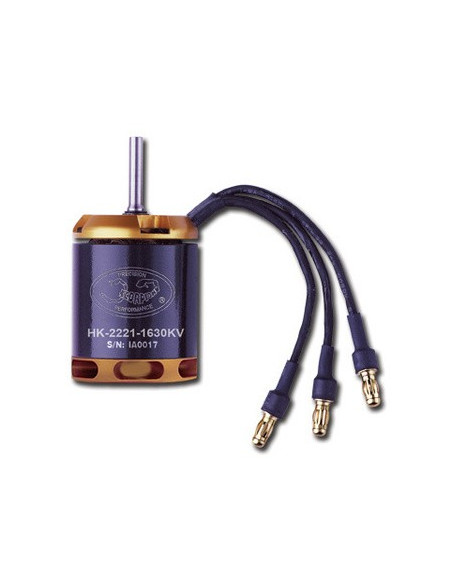

HK2221 Scorpion 1630 KV version 2

Référence SP-HKII-2221-1630

Scorpion

Stator Diameter ............................ 22.0 mm (0.866 in)
Stator Thickness ........................... 21.0 mm (0.827 in)
No. of Stator Arms ................................................. 9
No. of Magnet Poles ................................................ 6
Motor Wind ............................................. 10 Turn Wye
Motor Wire ...................... 13-Strand 0.21mm (31 AWG)
Motor Kv ........................................... 1630 RPM / Volt
No-Load Current (Io) ................. 0.71 Amps @ 10 volts
Motor Resistance (Rm) ............................. 0.079 Ohms
Max Continuous Current ............................... 25 Amps
Max Continuous Power ................................ 530 Watts
Weight .......................................... 79 Grams (2.79oz)
Outside Diameter .......................... 27.9 mm (1.097 in)
Shaft Diameter ............................. 3.17 mm (0.125 in)
Body Length ................................. 37.9 mm (1.492 in)
Overall Shaft Length ...................... 58.7 mm (2.311 in)

Poids (g): 81
Alimentation: Électrique
KV: 1630
Nombre de S: 6
Diamètre moteur (mm): 27.9
Diamètre de l’axe (mm): 3.17
Puissance (w): 530
