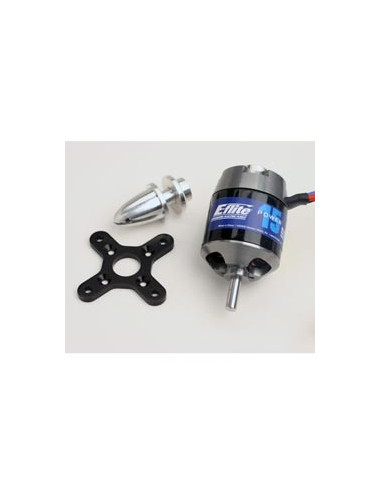

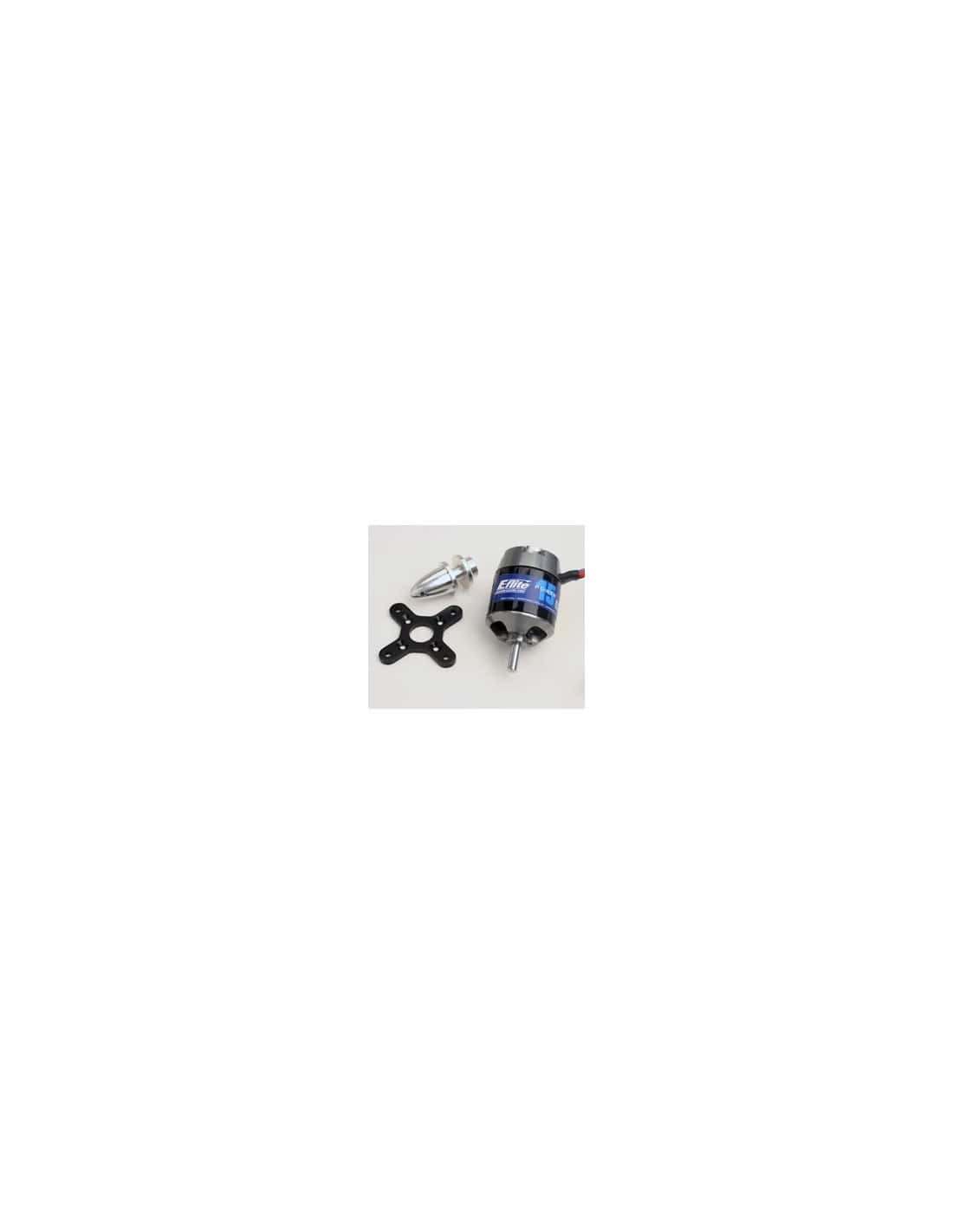

E-flite - EFLM4015A Power 15 Brushless Outrunner Motor, 950Kv / E-flite EFLM4015A
- E-Flite
EFLM4015A Power 15 Brushless Outrunner Motor, 950Kv / E-flite
57,42 €
Prix TTC
Description EFLM4015A Power 15 Brushless Outrunner Motor, 950Kv / E-flite
EFLM4015A Power 15 Brushless Outrunner Motor, 950Kv / E-flite
| Type: | Brushless outrunner motor |
| Size: | 15-size |
| Bearings or Bushings: | One 5 x 14 x 5mm Bearing, and One 5 x 11 x 5mm Bearings |
| Wire Gauge: | 16 |
| Recommended Prop Range: | 10x6-13x6.5 |
| Voltage: | 7.4-14.4V |
| RPM/Volt (Kv): | 950 |
| Resistance (Ri): | .03 ohms |
| Idle Current (Io): | 2.00A @10V |
| Continuous Current: | 34A |
| Maximum Burst Current: | 42A (15 sec) |
| Cells: | 8-12 Ni-MH/Ni-Cd or 3-4S Li-Po |
| Speed Control: | 40-45A brushless |
| Weight: | 152 g (5.4 oz) |
| Overall Diameter: | 35mm (1.40 in) |
| Shaft Diameter: | 5mm (.20 in) |
| Overall Length: | 50mm (1.90 in) |
Fiche technique
| Poids (g) | 152 |
| Alimentation | Électrique |
| KV | 950 |
| Nombre de S | 3-4 |
| Diamètre moteur (mm) | 35 |
| Diamètre de l’axe (mm) | 5 |
| Puissance (w) | 575 |
Accessoires et quantités recommandées
| Référence | Nom | Disponibilité | Prix | ||
|---|---|---|---|---|---|
|
EFLA1040B | 40-Amp Pro Switch-Mode BEC V2 Brushless ESC E-flite Recommanded quantity: 1 | In Stock | 66,66 € |
